This AutoCAD DWG drawing provides a complete and highly detailed industrial plant layout designed for architects, civil engineers, interior designers, builders, and CAD professionals. The plan includes accurate measurements such as 0.12 m, 0.35 m, 0.50 m, 0.75 m, 1.13 m, 1.32 m, 1.54 m, 6.1 m, and grid references from A to D and 01 to 24, ensuring perfect alignment during project execution. The layout features a 40,000 L vertical water tank, designated SALA DE BOMBAS AGUA and SALA DE COMPRESOR DE AIRE, along with robot concreto B25 foundations with a minimum height of 300 mm for heavy equipment. Multiple pozo structures, including pozo balanza, pozo hydrocoolers, pozo enzunchado, and nivel verification points, are clearly shown. The drawing includes stainless steel floor channels, 100 mm, 125 mm, and 50 mm valve discharge lines, NPT connections, galvanized 60x60 sanitary chambers, sliding fire-rated doors, escape routes, and metallic pillar placements following structural project guidelines. Additional specifications, such as pavimento horizontal, H2O drainage lines, foundation positions, and roadway level verification notes, make this DWG file a complete technical reference. Ideal for AutoCAD, Revit, 3ds Max, and SketchUp users, this drawing supports accurate industrial planning with clear dimensions, structural data, and service routing essential for professional construction workflows

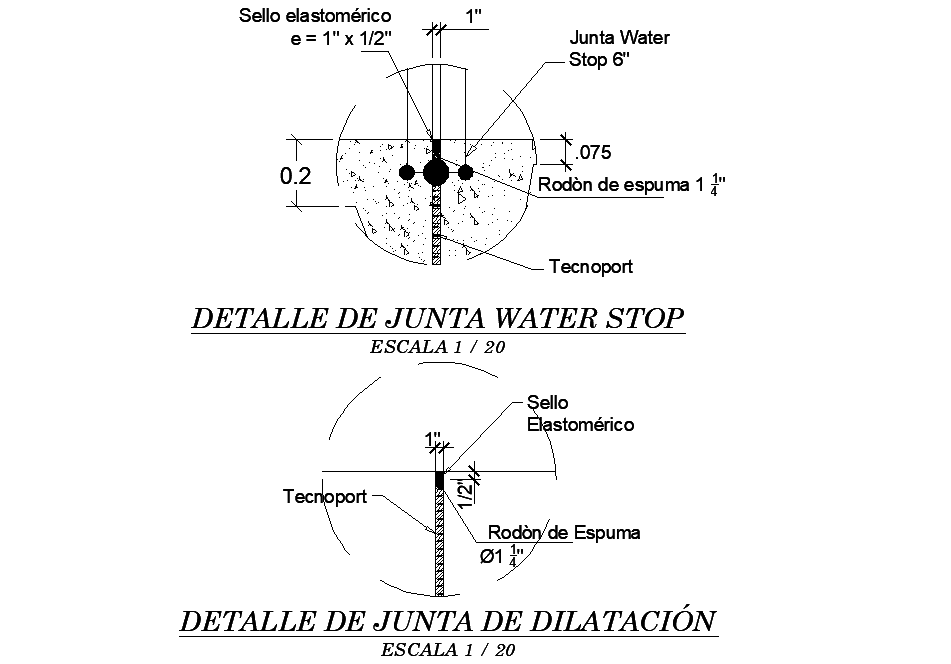

Water stop joint detail dwg file
