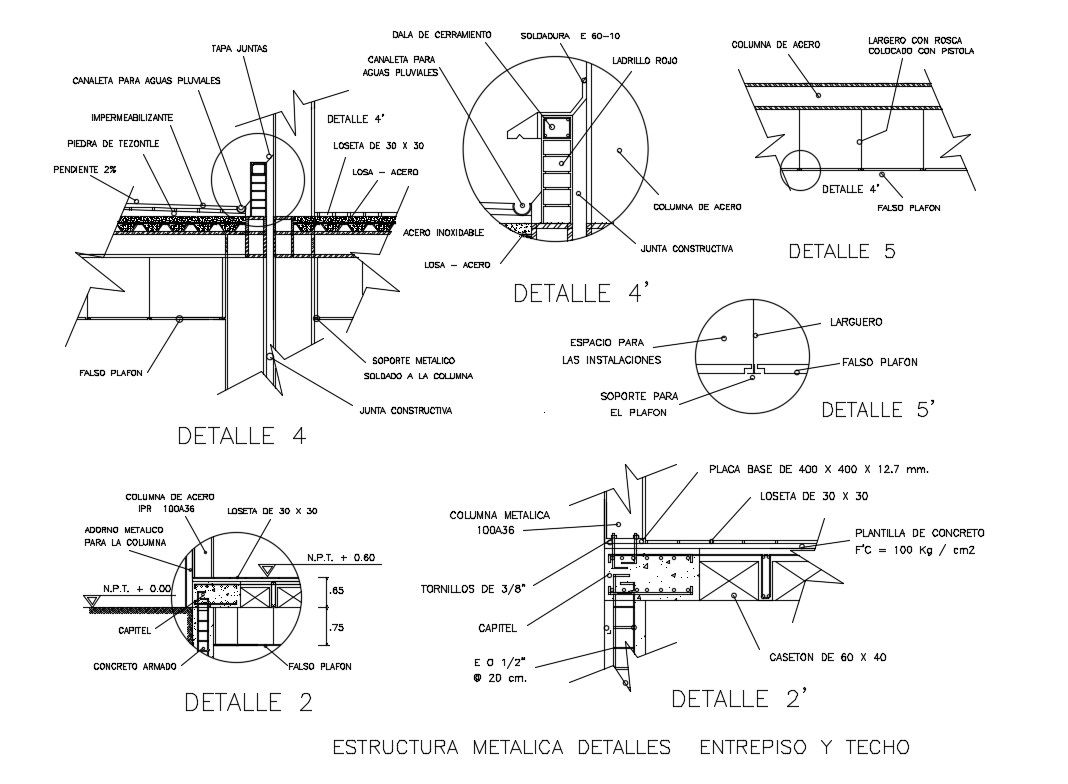

Metallic structure of mezzanines and ceilings cad drawing details dwg file


Description

Metallic structure of mezzanines and ceilings cad drawing details that includes a detailed view of Smooth embossed and riveted zinc-alum roof, vapor barrier. dynafoil asphalt felt, structural osb board, expanded polystyrene, Extruded plywood, Piece pine wood, brushed dry, Vapor, concrete base, placement of luminaire in the f.c.r. of fiber plates, mineral types zumtobel staff panos-hf-200, detail "a" detail of change of level of acoustic tiles, isometry of baldosa acustica, general plant, detail "c" false sky skull of flying and closing, main tee profile of suspension system 3.66 15/16 white color galvanized wire number 12 minimum 6 turns of tilting, cielo raso of acoustic tiles of mineral fiber and much more of false ceiling details.




File Type: DWG File ID: 62800

Uploaded by:


Vaishali
India
