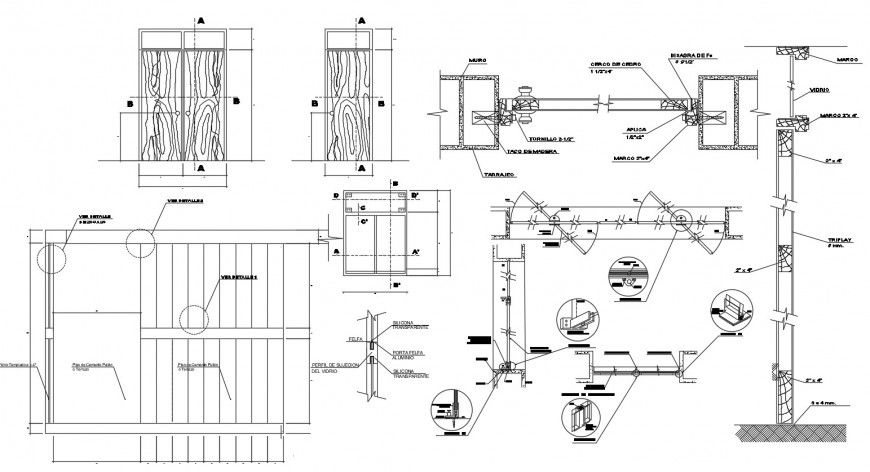

Bathroom doors elevation and installation drawing details dwg file


Description

Bathroom doors elevation and installation drawing details that includes a detailed view of door elevation details with wires and fences and galvanized mesh with clamps galv, aluminum couplings amarres galv, rh place 1 into the spot and 2 in the corners, pe as reinforcement in straight sections, technical specifications and model selection, symbology details, dimensions details with joints details and much more of door installation details.




File Type: DWG File ID: 88534

Uploaded by:


Eiz Luna
