Floor framing structure and site plan details for house dwg file


Description

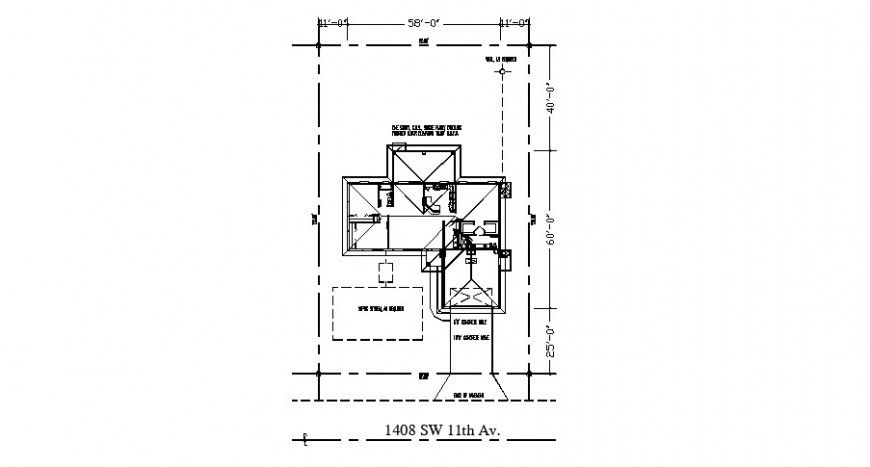

Floor framing structure and site plan details for house that includes a detailed view of wood posts with Grider pre-engineering, steel pipe column and play joints, existing floor joints, knee wall details provided. Steel pipe column with beam schedule details, dimensions details, measures and much more of framing plan details.
